TEA HOUSE
Type - Commercial
Size - 137m2
Location - Gnien il-Kunsill, Nadur, Gozo, Malta

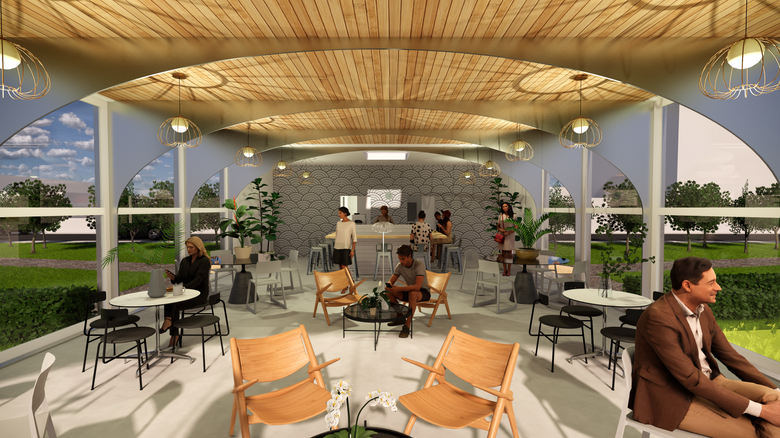

A Tea House forming part of a public park. Consisting of one module constructed with concrete, steel, glass and wood. One level is utilised so as not to disrupt its surroundings. Glass is used to remove visual barriers as much as possible. This results in the enjoyment of both customers and passers by.
LOCATION
Plot
CONCEPT DIAGRAM
![blocks for concept diagram [Converted]-0](https://static.wixstatic.com/media/c9c2c1_b826f8c6becf4481808d94cefaaaa34a~mv2.jpg/v1/crop/x_192,y_3,w_821,h_833/fill/w_248,h_252,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/blocks%20for%20concept%20diagram%20%5BConverted%5D-0.jpg)
![blocks for concept diagram [Converted]-0](https://static.wixstatic.com/media/c9c2c1_9b811c5968094408a0286ddd34b45544~mv2.jpg/v1/crop/x_199,y_3,w_828,h_835/fill/w_250,h_252,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/blocks%20for%20concept%20diagram%20%5BConverted%5D-0.jpg)
![blocks for concept diagram [Converted]-0](https://static.wixstatic.com/media/c9c2c1_bdd66d3761d747ea878572f7e9f9344d~mv2.jpg/v1/crop/x_202,y_3,w_820,h_832/fill/w_248,h_252,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/blocks%20for%20concept%20diagram%20%5BConverted%5D-0.jpg)
EXPLODED VIEW
A | Sitting Area
Metal Arches
Openable windows
Arched window front
Metal frame for lateral support of arches
Concrete roof and floor slabs
Skylight
B | Bar Area
Bar
Concrete pivot entrance doors
C | Storage & WC
Antiroom with seating
Toilet and wash basin
Storage with shelving
Door in storage for outside access
D | Utilities
Wood louvers for ventilation
Side door
PLANS & ELEVATIONS
Front Elevation
Side Elevation
Plan Elevation
SECTIONS
Section A-A
Section B-B
